3/4" x 22mm - 300mm Long

Product code SSH5

  • Summary

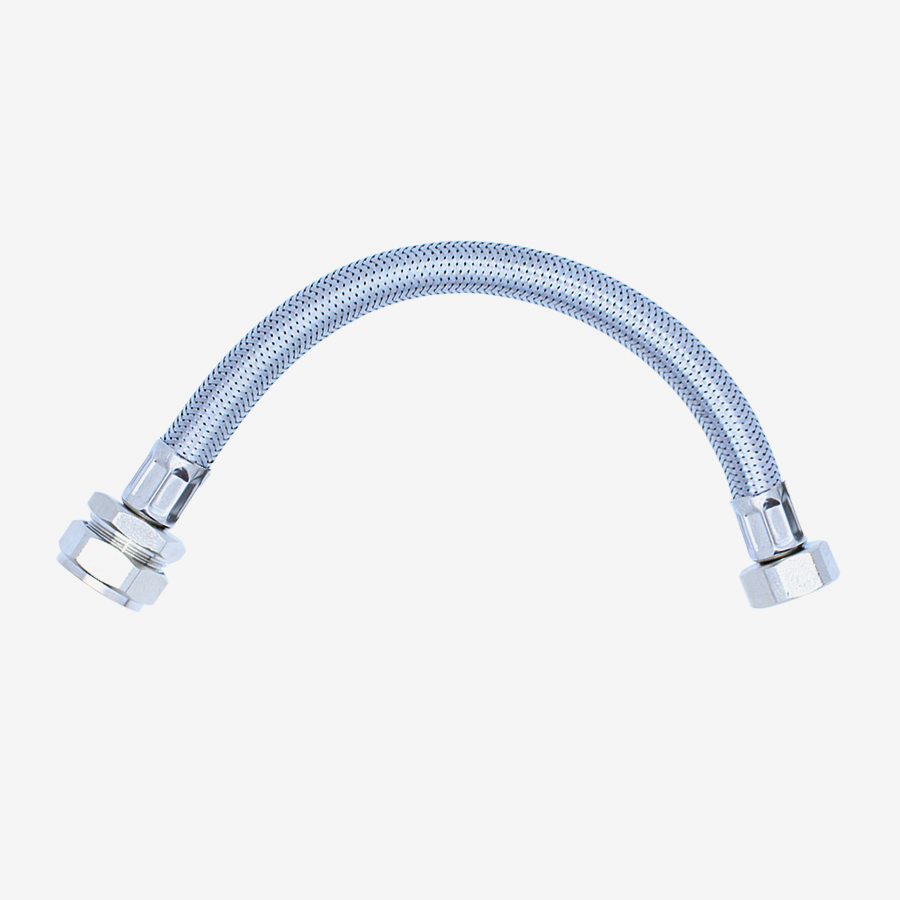

    A 300mm long stainless steel industrial strength braided hose which is flexible and resistant to kinks and bends. Constructed with a 22mm compression fitting at one end and a 3/4" female bsp thread at the other end. This hose has a 10 bar working pressure and a working temperature from -5°C to 90°C.

    • Constructed with a stainless steel outer braid
    • Synthetic rubber inner tube
    • Reinforced crimped ends for a firm secure connection
    • Ideal for industrial, commercial and residential applications

  • Specifications

    Standard
    EN1254-2
    Box Quantity
    150
    Length
    300mm
    Bore Size
    13mm
    Hose Diameter
    17mm
    Working Pressure
    10 bar
    Working Temperature
    -5 to 90°C
    Barcode
    5060262730195
