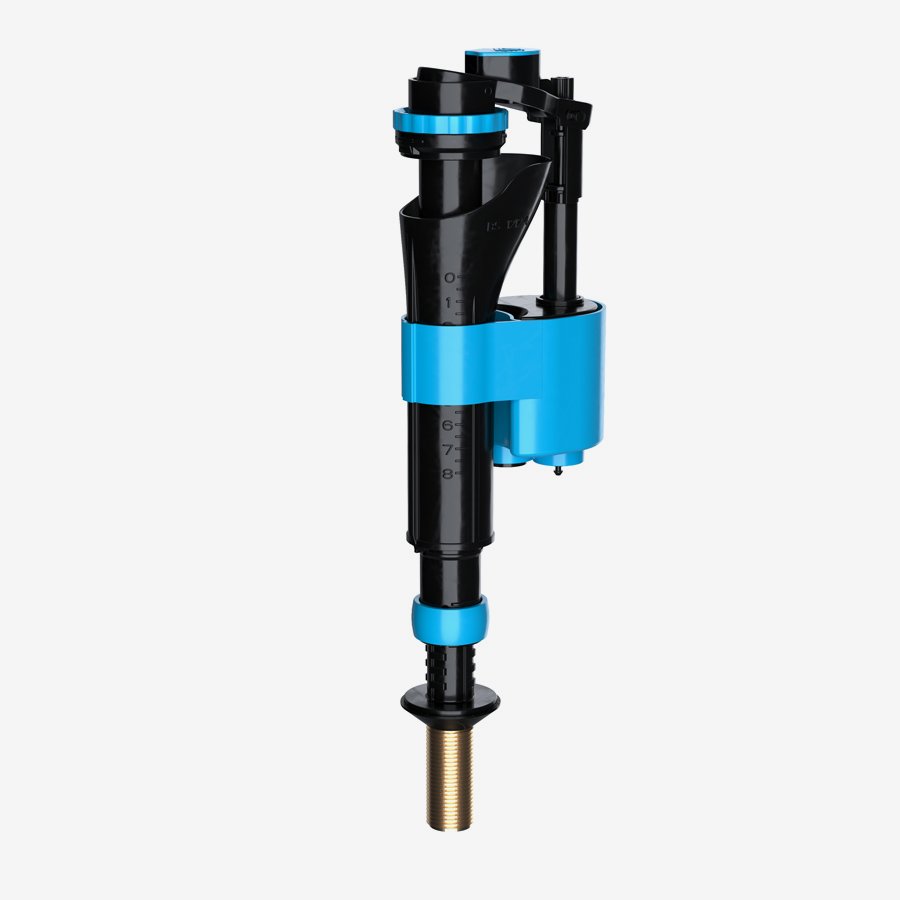

Skylo AIR Bottom Entry Fill Valve (½" UK) Brass Thread

The Skylo Air bottom entry fill valve is small and compact, allowing it to fit in a variety of different cistern sizes. It has a delayed fill and a float shield meaning it can squeeze into the tightest cisterns. It can adjust in height from 8" to 12".

  • AG Air Gap Design
  • BS1212-4 Compliant
  • Suitable with Requirements of AUK1
  • Compact
  • Telescopic
  • Water Saving Delayed Fill
  • Quiet Fill
  • Heavy Duty Brass Thread

Skylo AIR Bottom Entry Fill Valve (½" UK) Brass Thread

    Skylo AIR Bottom Entry Fill Valve (½" UK) Brass Thread

    The Skylo Air bottom entry fill valve is small and compact, allowing it to fit in a variety of different cistern sizes. It has a delayed fill and a float shield meaning it can squeeze into the tightest cisterns. It can adjust in height from 8" to 12".

    • AG Air Gap Design
    • BS1212-4 Compliant
    • Suitable with Requirements of AUK1
    • Compact
    • Telescopic
    • Water Saving Delayed Fill
    • Quiet Fill
    • Heavy Duty Brass Thread

    Product Code

    SKYAIR01
    Find Stockist
    Specifications
    Box Quantity 50
    Height Adjustable 8" - 12"
    Working Pressure 0.25 - 16bar
    Thread Size ½" (UK)
    Thread Material Brass
    Flow Rate (2 Bar) 0.208 L/S
    Barcode 5060262731642

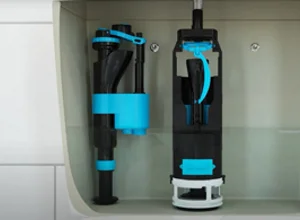

    Installation Instructions
    SKYAIR01 - Skylo Air Bottom Entry Fill Valve (½" UK) Brass Thread
    Technical Documents
    SKYAIR01 - Technical Data Sheet
